Zika virus NS1 protein antibody

Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307
Anti-Zika virus NS1 protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133307
Anti-Zika virus NS1 protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133307
Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307
Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307
Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307
Anti-Zika virus NS1 protein antibody used in ELISA (ELISA). GTX133307

Cat No. GTX133307

Host

Rabbit

Clonality

Polyclonal

Isotype

IgG

Application

WB, ICC/IF, ELISA, sELISA

Reactivity

Human, Zika virus
Package
100 μl ($359),
25 μl ($169)

APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:100-1:10000
ICC/IF 1:100-1:1000
ELISA 1:1000-1:10000
sELISA Assay dependent

Note :

sELISA
Capture: GTX634158 , Detection: GTX133307

Not tested in other applications.

Calculated MW

40 kDa. ( Note )

Positive Control

Zika virus NS1-transfected 293T

PROPERTIES

Form

Liquid

Buffer

1XPBS, 20% Glycerol (pH7). 0.025% ProClin 300 was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Immunogen

Carrier-protein conjugated synthetic peptide encompassing a sequence within the C-terminus region of Zika virus NS1 protein. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.

TARGET

Synonyms

Zika virus Non-structural protein 1 , Zika virus NS1 , ZIKV Non-structural protein 1 , ZIKV NS1

Research Area

DATA IMAGES

Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307

GTX133307 WB Image

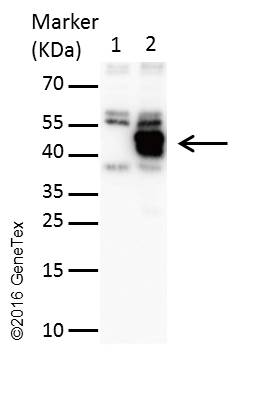

Non-infected (–) and infected (+) vero cells (15 μg) were separated by gradient gel, and the membrane was blotted with Zika virus NS1 protein antibody (GTX133307) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus NS1 protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133307

GTX133307 ICC/IF Image

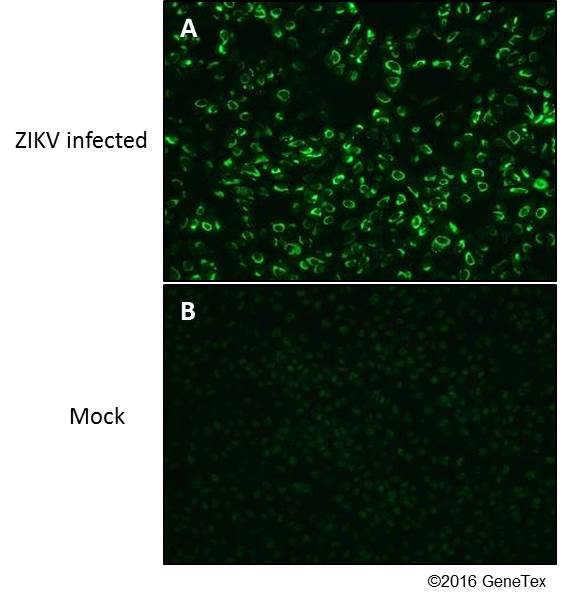

Immunofluorescent analysis of Zika Virus-PRVABC59 infected (A) and non-infected (B) vero cells using Zika virus NS1 protein antibody (GTX133307).
Green: Zika virus NS1 protein antibody (GTX133307) diluted at 1:4000.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus NS1 protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133307

GTX133307 ICC/IF Image

Immunofluorescent analysis of non-infected and infected vero or BHK-21 cells using Zika virus NS1 protein antibody (GTX133307).
Green: Zika virus NS1 protein antibody (GTX133307) diluted at 1:4000.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307

GTX133307 WB Image

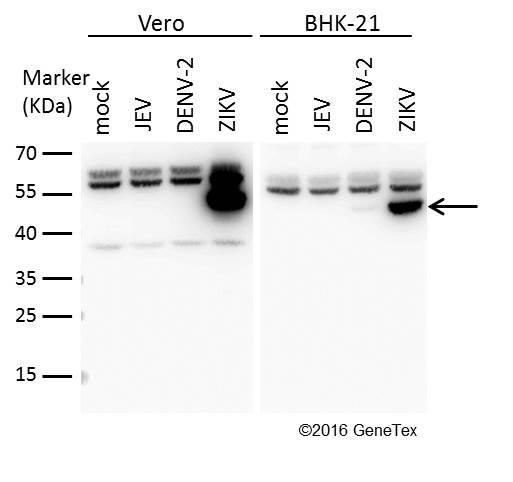

Mock and infected Vero and BHK-21 whole cell extracts (20 μg) were separated by gradient gel, and the membrane was blotted with Zika virus NS1 protein antibody (GTX133307) diluted at 1:4000.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307

GTX133307 WB Image

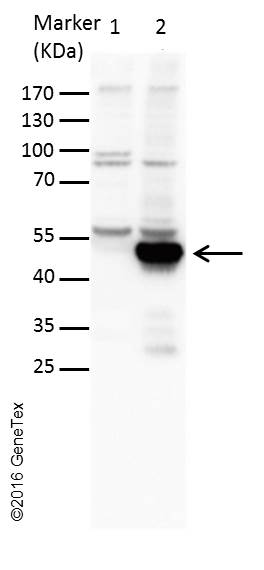

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Zika virus NS1 protein antibody (GTX133307) diluted at 1:200. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Anti-Zika virus NS1 protein antibody used in Western Blot (WB). GTX133307

GTX133307 WB Image

Non-infected (–) and infected (+) C6/36 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Zika virus NS1 protein antibody (GTX133307) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Anti-Zika virus NS1 protein antibody used in ELISA (ELISA). GTX133307

GTX133307 ELISA Image

Sandwich ELISA detection of non-transfected and transfected 293T whole cell extracts using GTX634158 as capture antibody at concentration of 5 μg/mL and GTX133307 as detection antibody at concentration of 1 μg/mL. Rabbit IgG antibody (HRP) (GTX213110-01) was diluted at 1:10000 and used to detect the primary antibody.

REFERENCE

REVIEW

Zika virus NS1 protein antibody Cat No. GTX133307

Rating ( Average 4.8 based on 5 users reviews)
Application
Western Blot(WB) ( Average 4.7 based on 3 users reviews)
Immunocytochemistry/ Immunofluorescence(ICC/IF) ( Average 5 based on 2 users reviews)
Date : Anonymous submitted on 14-Jun-2016
Score :
Application Tested : WB
Sample Species : ZIKV
Sample : ZIKV-infected vero cells, ZIKV-infected BHK21 cells
Blocking : 5% non-fat milk
Primary Antibody : 1:4000, 4°C, 16Hr
Date : Anonymous submitted on 13-Jun-2016
Score :
Application Tested : ICC/IF
Sample Species : ZIKV
Sample : ZIKV-infected vero cells, ZIKV-infected BHK21 cells
Blocking : 3% BSA in PBS
Primary Antibody : 1:4000, 4°C, 16Hr
Date : Anonymous submitted on 04-Jun-2016
Score :
Application Tested : ICC/IF
Sample Species : ZIKV
Sample : Zika Virus-PRVABC59 infected vero cells
Fixation : methanol + acetone
Primary Antibody : 1:4000, 4°C, 16Hr
Figure Note : A: Zika Virus-PRVABC59 infected vero cells. (MOI=1 24h), B: vero cell
Date : Anonymous submitted on 04-Jun-2016
Score :
Application Tested : WB
Sample Species : ZIKV
Sample : Zika Virus-PRVABC59 infected C6/36 cells
Amount used : 20μg
Blocking : 5% non-fat milk
Primary Antibody : 1:4000, 4°C, 16Hr
Lane Description : Lane 1: C6/36 cells, Lane 2: Zika Virus-PRVABC59 infected C6/36 cells
Date : Anonymous submitted on 02-Jun-2016
Score :
Application Tested : WB
Sample Species : ZIKV
Sample : Zika Virus-PRVABC59 infected vero cells
Amount used : 15μg
Blocking : 5% non-fat milk, 25°C, 0.5Hr
Primary Antibody : 1:2000, 4°C, 16Hr
Lane Description : Lane 1: vero cells, Lane 2: Zika Virus-PRVABC59 infected vero cells. (MOI=0.1 96h)
