alpha Actinin 4 antibody [C2C3], C-term


Cat No. GTX101669

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, ICC/IF, IHC-P
Reactivity Human, Mouse, Rat
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:3000
ICC/IF 1:100-1:1000
IHC-P 1:100-1:1000
Not tested in other applications.

Calculated MW

105 kDa. ( Note )

Positive Control

293T , A431 , HeLa , HepG2 , A375 , Neuro 2A , GL261 , C8D30 , NIH-3T3 , BCL-1 , Raw264.7 , C2C12 , mouse brain , PC-12

Predict Reactivity

Zebrafish, Bovine, Chicken, Xenopus laevis, Rhesus Monkey(>80% identity)
PROPERTIES

Form

Liquid

Buffer

0.1M Tris, 0.1M Glycine, 20% Glycerol (pH7). 0.01% Thimerosal was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

0.32mg/ml(Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the C-terminus region of human alpha Actinin 4. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

Actinin Alpha 4,Actinin-4,Fsgs,Fsgs1,Actn4

Cellular Localization

Nucleus , Cytoplasm

Background

Alpha actinins belong to the spectrin gene superfamily which represents a diverse group of cytoskeletal proteins, including the alpha and beta spectrins and dystrophins. Alpha actinin is an actin-binding protein with multiple roles in different cell types. In nonmuscle cells, the cytoskeletal isoform is found along microfilament bundles and adherens-type junctions, where it is involved in binding actin to the membrane. In contrast, skeletal, cardiac, and smooth muscle isoforms are localized to the Z-disc and analogous dense bodies, where they help anchor the myofibrillar actin filaments. This gene encodes a nonmuscle, alpha actinin isoform which is concentrated in the cytoplasm, and thought to be involved in metastatic processes. Mutations in this gene have been associated with focal and segmental glomerulosclerosis. [provided by RefSeq]

Database

Research Area

DATA IMAGES

GTX101669 ICC/IF Image

Confocal immunofluorescence analysis (Olympus FV10i) of paraformaldehyde-fixed HeLa, using alpha Actinin 4(GTX101669) antibody (Green) at 1:500 dilution. Alpha-tubulin filaments were labeled with GTX11304 (Red) at 1:2000.


GTX101669 WB Image

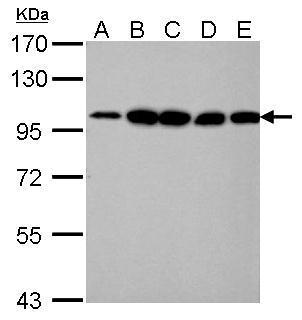

alpha Actinin 4 antibody [C2C3], C-term detects ACTN4 protein by western blot analysis.
A. 30 µg 293T whole cell lysate/extract
B. 30 µg A431 whole cell lysate/extract
C. 30 µg HeLa whole cell lysate/extract
D. 30 µg HepG2 whole cell lysate/extract
E. 30 µg A375 whole cell lysate/extract
7.5% SDS-PAGE
alpha Actinin 4 antibody [C2C3], C-term (GTX101669) dilution: 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.


GTX101669 WB Image

Sample (50 µg of whole cell lysate)
A: Mouse brain
5% SDS PAGE
GTX101669 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.


GTX101669 WB Image

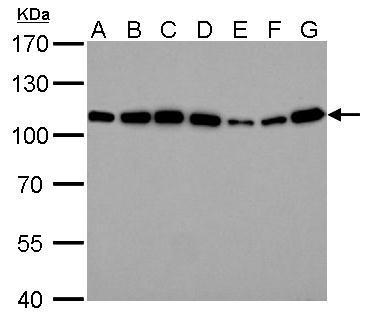

alpha Actinin 4 antibody [C2C3], C-term detects ACTN4 protein by western blot analysis.
A. 30 µg Neuro2A whole cell lysate/extract
B. 30 µg GL261 whole cell lysate/extract
C. 30 µg C8D30 whole cell lysate/extract
D. 30 µg NIH-3T3 whole cell lysate/extract
E. 30 µg BCL-1 whole cell lysate/extract
F. 30 µg Raw264.7 whole cell lysate/extract
G. 30 µg C2C12 whole cell lysate/extract
7.5% SDS-PAGE
alpha Actinin 4 antibody [C2C3], C-term (GTX101669) dilution: 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.


GTX101669 IHC-P Image

Immunohistochemical analysis of paraffin-embedded A549 xenograft, using alpha Actinin 4(GTX101669) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min


GTX101669 WB Image

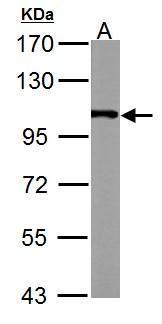

alpha Actinin 4 antibody [C2C3], C-term detects ACTN4 protein by western blot analysis.
A. 30 µg PC-12 whole cell lysate/extract
7.5% SDS-PAGE
alpha Actinin 4 antibody [C2C3], C-term (GTX101669) dilution: 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.


GTX101669 IHC-P Image

alpha Actinin 4 antibody [C2C3], C-term detects alpha Actinin 4 protein on mouse intestine by immunohistochemical analysis.
Sample: Paraffin-embedded mouse intestine.
alpha Actinin 4 antibody [C2C3], C-term (GTX101669) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

REFERENCE
REVIEW

alpha Actinin 4 antibody [C2C3], C-term Cat No. GTX101669

Rating ( Average 4 based on 1 users reviews)
Application
Western Blot(WB) ( Average 4 based on 1 users reviews)

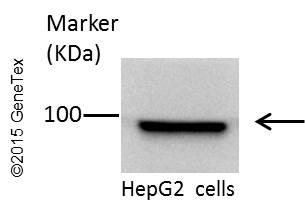

Date : Anonymous submitted on 23-Jan-2015
Score :
Application Tested : WB
Sample Species : Hu
Sample : HepG2 cells
Amount used : 30μg
Blocking : 5% milk in TBST, 25°C, 1Hr
Primary Antibody : 1:1000, 4°C, 16Hr
