IHC-P analysis of human colon tissue using GTX15794 gamma Tubulin antibody [4D11].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

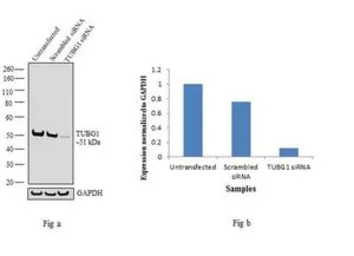

WB analysis of gamma tubulin knockdown HeLa cells (lane 3), scrambled siRNA transfected cells (lane 2) and untransfected cells (lane 1) using GTX15794 gamma Tubulin antibody [4D11].
Dilution : 1:1000

IHC-P analysis of human breast carcinoma tissue using GTX15794 gamma Tubulin antibody [4D11].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:20

ICC/IF analysis of HeLa (A) and U2-OS cells (B) using GTX15794 gamma Tubulin antibody [4D11].
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 10 minutes
Dilution : 1:50 for at least 1 hour at room temperature

WB analysis of membrane enriched extracts (30 ug lysate) of A-549 (Lane 1), MCF-7 (Lane 2), HeLa (Lane 3), HepG2 (Lane 4), Caco2 (Lane 5), A-431 (Lane 6), SH-SY5Y (Lane 7) and U-2 OS (Lane 8) using GTX15794 gamma Tubulin antibody [4D11].
Dilution : 1 μg/ml

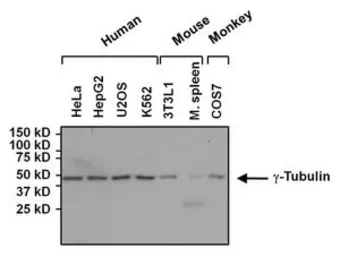

WB analysis of 50 ug of various whole cell lysates using GTX15794 gamma Tubulin antibody [4D11].
Dilution : 1:1000
