pan NOS antibody [NOS-3F7-B11 B5]

Cat. No. GTX22801
1
Cat. No.  GTX22801
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
GTX22801 ICC/IF Image

ICC/IF analysis of HeLa cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

1 / 5
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
GTX22801 ICC/IF Image

ICC/IF analysis of SK-N-MC Cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:20 overnight at 4ºC

2 / 5
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Western Blot (WB). GTX22801
GTX22801 WB Image

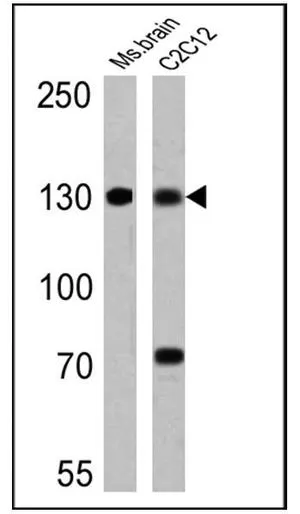

WB analysis of 25 ug of mouse brain (lane 1) and C2C12 (lane 2) lysates using GTX22801 pan NOS antibody [NOS-3F7-B11 B5].
Dilution : 1:100

3 / 5
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
GTX22801 ICC/IF Image

ICC/IF analysis of C2C12 cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

4 / 5
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
GTX22801 ICC/IF Image

ICC/IF analysis of SK-N-MC cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

5 / 5
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Western Blot (WB). GTX22801
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
Anti-pan NOS antibody [NOS-3F7-B11 B5] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX22801
This pan NOS antibody [NOS-3F7-B11 B5] (GTX22801) is a mouse monoclonal antibody validated for detection of pan NOS by WB, ICC/IF, IHC-Fr, IP, and IHC. Reactivity has been shown in Human, Mouse, Rat, and other species.
  • Host
    Mouse
  • Clonality
    Monoclonal
  • Clone Name
    NOS-3F7-B11 B5
  • Isotype
    IgM
  • Applications
    WB ICC/IF IHC-Fr IP IHC
  • Reactivity
    Human, Mouse, Rat, Bovine
